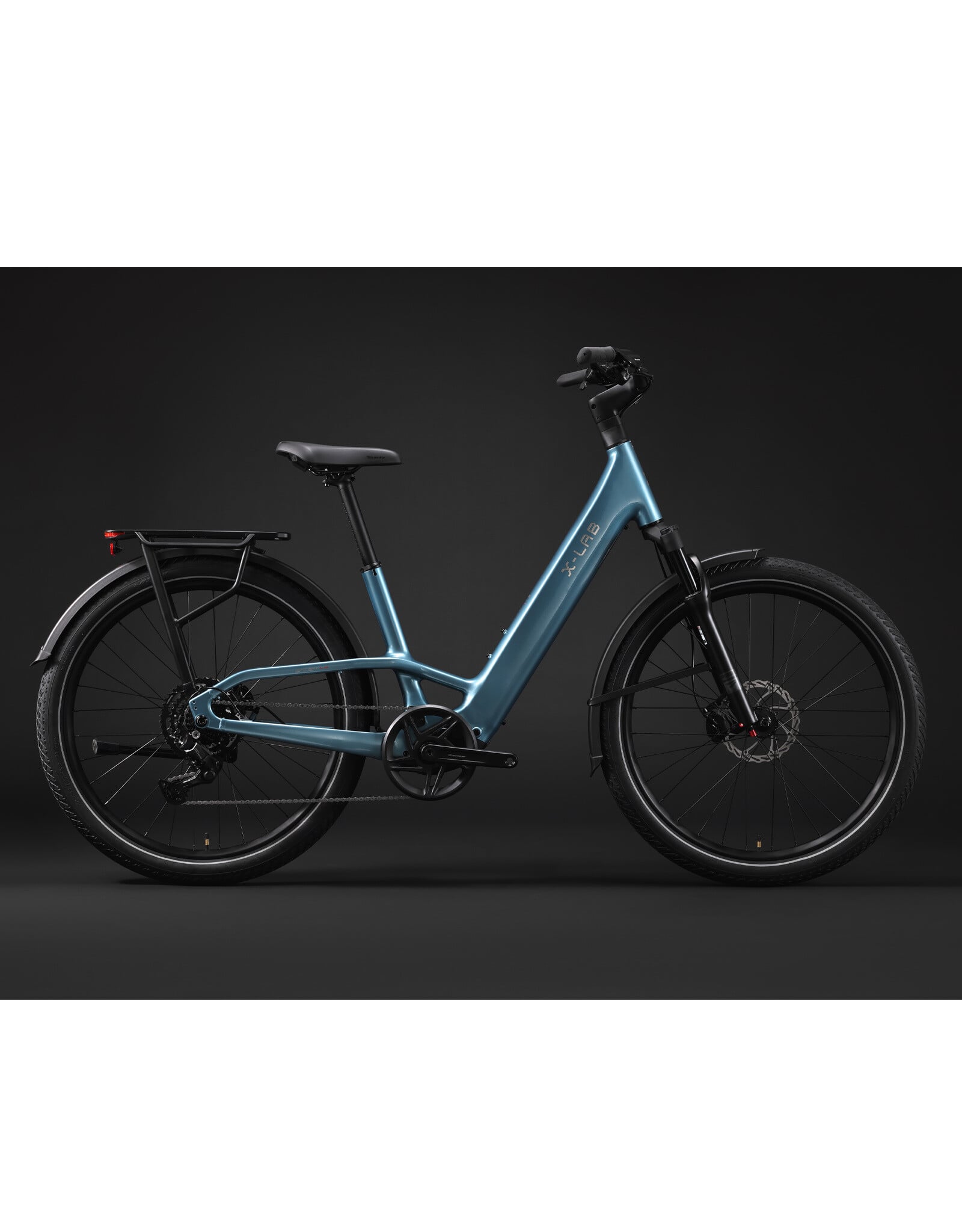

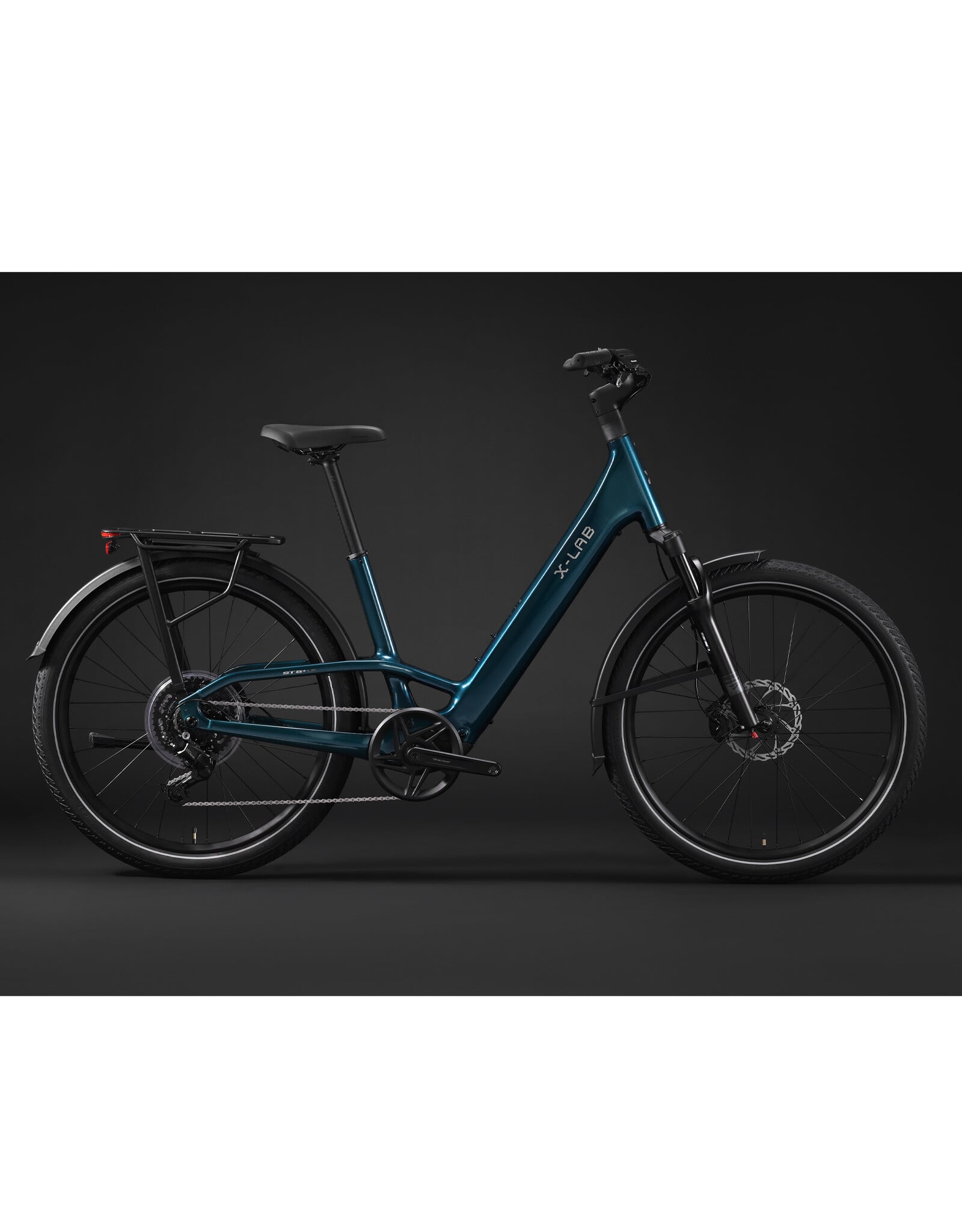

X-LAB ST5+ Step Thru

$1,999.00
Part number: 9218-0064
Availability: In Stock

- Mid-Drive utility machine that's commuter ready
- "This is the one for replacing car trips..." - BikeRumor
- Torque for hills and loads on any commuter route
- 619Wh battery + up to 75+ mile range

The ST5+ brings X-LAB engineering to modern urban mobility.

Powered by an integrated electric system and built on a refined aluminum platform, the ST5+ delivers smooth acceleration, confident handling, and the comfort needed for everyday riding.

With an easy on and easy off step through frame, the ST5+ is designed for riders who want more from their city bike, the ST5+ makes commuting faster, cleaner, and far more enjoyable.

From daily travel to spontaneous detours, the ST5+ transforms the way you move through the city.



FRAME

XDS X6 Aluminum Frame, UDH Compatible

FORK

XDS Suspension Fork, Coil Spring, 80mm Travel,

110x15mm Thru-axle

HANDLEBAR / STEM

Branta Aluminum Integrated, w/ Monitor & Front light, 680mm

Width, 90mm Length, 8 Degree Rise, 28 Degree Backsweep

SEATPOST

XDS Aluminum Seatpost, 31.6mm

REAR DERAILLEUR

Shimano Cues RD-U4000, 9-Speed

SHIFTER

Shimano Cues SL-U4000-9R

BRAKES

Branta E-Bike Brake, w/ Cutoff Switch, 3 Finger Lever,

4 Pistons Caliper

CASSETTE

Shimano CS-LG300 11-46T, 9-Speed

CRANKSET

Branta Aluminum Crankset, 46T, Narrow-wide Teeth

MOTOR

XDS Mid-drive X800 Motor, 250 Watt Maximum Continuous

Rated Power, 470 Watt Peak Power, 85N.m. Peak Torque

BATTERY

XDS Rechargeable Li-ion Battery, 619Wh

ROTORS

Branta 180Z, F:180mm R:180mm

CHAIN

KMC E-GLIDE-S

WHEELSET

Branta Aluminum E-Bike Wheelset

TIRES

CST CTC-06, 27.5"x2.4, 30TPI, w/ Reflective Strips

SADDLE

Branta C302

PHONE HOLDER

Quad Lock Mount

REAR RACK

MIK-HD Rack

WEIGHT

26kg / 57.32 (Size M)
